STAR Maple Drum Kits
SCROLL

STAR Maple Drum Kits

STAR is the new flagship line for TAMA drums. It takes the knowledge and research we cultivated for the Starclassic series to the next level, by reexamining every detail to enhance shell resonance.
STAR Maple shell's "Solid Core Ply" is a totally new design for this series. This unique shell provides the warm, open tone of Maple, combined with the rich, hearty sound of a solid ply shell.

SCROLL

FINISHES

Learn More

LACQUER FINISHES

EXOTIC FINISHES (LACQUER)

PREMIUM LACQUER FINISHES

DURACOVER WRAP FINISHES

UNICOLOR WRAP FINISHES

COCKTAIL-JAM KIT

COCKTAIL-JAM MINI KIT

COVERING FINISHES

OIL FINISH

※該当仕上げなし※

Learn More
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • LACQUER FINISHES
  • RECB
  • ROLC
  • RRCM
  • RGCM
  • SBM
  • SAB
  • ATW
  • SKB
  • AMO
  • GAQ
  • SYL
  • SDR
  • PBK
  • RECB Emerald Sea Curly Maple Burst
  • ROLC Ocean Blue Curly Maple
  • RRCM Raspberry Curly Maple
  • RGCM Gloss Natural Curly Maple
  • SBM Satin Blue Metallic
  • SAB Satin Antique Brown for Maple Shell Only
  • ATW Antique White
  • SKB Smoky Black
  • AMO Atomic Orange
  • GAQ Grand Aqua Blue
  • SYL Sunny Yellow Lacquer
  • SDR Solid Candy Red
  • PBK Piano Black

SPECIFICATIONS

Learn More

Product specification information is listed below.

Learn More

OPTIONS

Learn More

Wood Inlay Option

STAR drums come standard with a beautiful center wood inlay on the outside of the shells. We also offer the inlay on the inside of the Sound Focus Rings, or without any inlay at all.
*The "No Inlay" option is NOT available on the Emerald Sea Curly Maple (RECB), Gloss Natural Curly Maple (RGCM), Raspberry Curly Maple (RRCM) and Ocean Blue Curly Maple (ROLC).

Ex Model No.:
TBT1209S (Wood Inlay Outside), TBT1209D (Wood Inlay Outside & Inside), TBT1209 (Without Inlay)

Bass Drum Hoop Color Option

Bass drums come standard with matching finish wood hoops. We also offer a Natural Matte Finish and a Dark Brown Matte Finish for the hoops, available for most drum colors.
*The "Natural Matte Finish Hoops" option is NOT available on the Gloss Natural Curly Maple (RGCM).

Ex Model No.:
TBB2214S (Matched Finish Hoops), TBB2214SN (Natural Matte Finish Hoops), TBB2214SB (Dark Brown Matte Finish Hoops)

Learn More

MODEL NUMBER SYSTEM

Learn More

This is the model number system diagram for individual drums.

Illustration of the model number system for individual drums of STAR Maple Drum Kits

DESCRIPTION

This diagram shows the numbering system for a single drum.
For example, take part number "TMB2218DN".
The following meanings are assigned to each letter:
The first is the series.
The second is the type of wood.
The third is the type of drum: B for bass drum, T for tom-tom, F for floor tom, and S for snare drum.
The fourth and fifth numbers are the diameter.
The sixth and seventh numbers are the depth.
The eighth number is for the inlays: D is for inlays on the inside and outside of the shell. S for inlays on the outside only. None for no inlays.
The ninth is the color of the hoop. N for Natural Matte Finish wood hoop. B for Dark Brown Matte Finish wood hoop. None for Matched Finish wood hoop.

Learn More

INDIVIDUAL DRUMS

Learn More

The individual drums of various sizes is available.

LACQUER FINISHES

  • Bass Drums

  • Floor Toms

  • Tom Toms

  • Snare Drums

EXOTIC FINISHES (LACQUER)

  • Bass Drums

  • Floor Toms

  • Tom Toms

  • Snare Drums

PREMIUM LACQUER FINISHES

  • Bass Drums

  • Floor Toms

  • Tom Toms

  • Snare Drums

DURACOVER WRAP FINISHES

  • Bass Drums

  • Floor Toms

  • Tom Toms

  • Snare Drums

UNICOLOR WRAP FINISHES

  • Bass Drums

  • Floor Toms

  • Tom Toms

  • Snare Drums

COVERING FINISHES

  • Bass Drums

  • Floor Toms

  • Tom Toms

  • Snare Drums

OIL FINISH

  • Bass Drums

  • Floor Toms

  • Tom Toms

  • Snare Drums

  • Bass Drums

  • Floor Toms

  • Tom Toms

  • Snare Drums

Learn More

FEATURES

Learn More

The following is a detailed introduction to the many unique mechanisms on board.

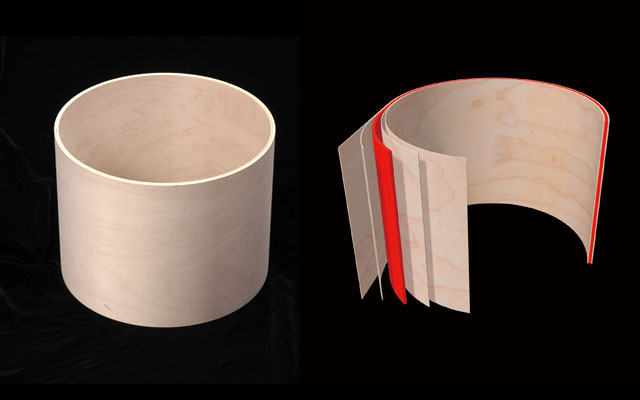

  • Maple Shells (STAR Drum)
    Learn More

    5mm, 5ply Maple, or 5ply Maple + 1 additional outer ply Curly Maple for ROLC/RRCM/RGCM/RECB w/ 5mm Sound Focus Rings

    Although they feature one of the most popular and traditional drum shell materials, STAR Maple drums have some very unique hidden features that set them apart from the rest. The ultra-thin 5 ply, 5mm shells are comprised of a 2mm thick solid wood core ply, sandwiched between 1.5mm thick cross-laminated plies on both sides.
    Traditional Maple shells generally sound bright and open. Our STAR Maple shells share those characteristics, but also add rich dynamics, body, and warmth, by utilizing a solid ply core. The concept is similar to other solid shell drums, but our unique shell construction allows the shells to be very thin by comparison. This groundbreaking design gives STAR Maples shells the bright, open tone one expects from Maple, as well as the rich sound character of solid shell drums, resulting in a truly one-of-a-kind, outstanding combination.

    Close
  • Drum Heads
    Learn More

    Tom Toms & Floor Toms: REMO® Coated Ambassador for Batter Side / REMO® Clear Ambassador for Bottom Side

    Bass Drums: REMO® Coated Powerstroke 3 for Batter Side / REMO® Fiberskyn Powerstroke 3 Diplomat for Front Side

    Snare Drums: REMO® Coated Ambassador for Batter Side / REMO® Snare Ambassador for Snare Side

    Close

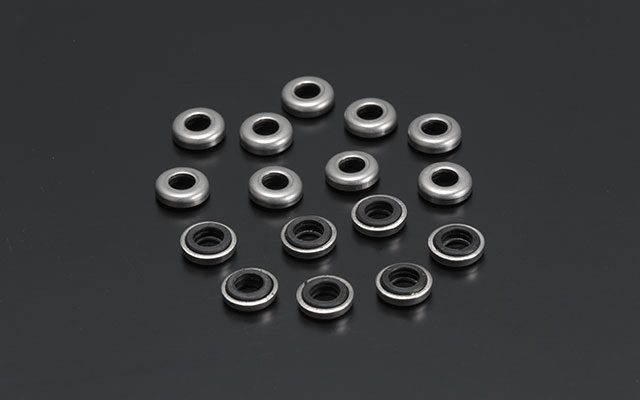

  • Hold Tight™ Washers (US.PAT.NO.7307204)
    Learn More

    Hold Tight washers are designed to prevent the tension rods from loosening. They consist of a cup-shaped stainless steel washer which contains a rubber ring.
    Vibration caused from striking a drum creates space between tension rods and hoops, which can cause the tension rods to loosen over time. The rubber rings on our Hold Tight washers help absorb the impact of vibration and keeps tension rods in constant contact with the hoops to prevent loosening.

    Close
  • Die-Cast Hoops
    Learn More

    Hoops are a crucial element to a drum's sound and ease of tuning. STAR drums feature die-cast zinc hoops, which are manufactured by injecting molten metal into molds. Die-cast hoops are denser and more consistent in shape than triple-flanged hoops, which are manufactured by bending metal plates.

    Sonically, die-cast hoops provide crisper attack, greater projection and a more focused and powerful tone. Die-cast hoops also make tuning easier and keep drums in tune longer because of their density and consistency in shape. These hoops combine with the rich, resonant STAR drum shells for a very well-balanced, full-bodied sound.

    Close
  • Minimum Shell Contact
    Learn More

    Every piece of hardware that is attached to shells affects the resonance and sound of the drums. In developing the STAR drum line, every detail was carefully considered to maximize resonance and optimize sound.

    The newly designed lugs for STAR drums have a luxurious, sophisticated look, as well as an extremely low mass bridge construction for minimum shell contact. The bass drum claw hooks follow the same principle by "floating" on the surface of the bass drum hoops. STAR drums also feature an imprinted badge and small wooden air hole grommet which further reduce the weight of materials on the shell and improve resonance and sound.

    Close
  • Bass Drum Spurs (US.PAT.NO.9093051)
    Learn More

    The bass drum spurs adopt the same concept as the floor tom legs. Since the bass drum spurs receive the horizontal impact from the pedal striking the bass drum, properly absorbing this impact is critical to the natural resonance of the bass drum shell and for a comfortable feel from the bass drum pedal. This is why we designed STAR bass drum spurs with soft, high-mass rubber feet.

    There is one more important consideration. Most bass drum spurs have metal spikes at the end to prevent slippage while playing. This is an important feature for many drummers, so to achieve the same impact absorption principle while using metal spikes, STAR bass drum spurs feature a unique 2-piece construction. The spike is separated from the rest of the spur by rubber, which absorbs the impact without transferring it to the spike itself, allowing the bass drum shell to vibrate and resonate more freely.

    Close
  • Floor Tom Legs
    Learn More

    In general, floor toms are positioned vertically and are struck with downward force. This means that the floor tom legs receive this downward impact directly. The tips of STAR floor tom legs feature a special, hollow, soft rubber construction which help absorb this impact in a way that emphasizes the drum's natural resonance and sustain.

    Playability is also one of the key elements we considered in crafting the high-end STAR drum line. This hollow, soft rubber construction on the floor tom legs also provide a very comfortable feel and response when striking the drum.

    Close
  • Quick-Lock Tom Brackets (US. PAT. NO.9269337)
    Learn More

    The "Quick-Lock" tom brackets equipped on the Super Resonant Mounting System and on STAR floor toms have some very distinctive, ground-breaking features.

    First and foremost, as their name suggests, these brackets allow for quick and easy setup and breakdown. But the real unique feature of these brackets is that once the drum is positioned on a tom stand or floor tom legs, there is no need to attach and adjust separate memory locks to save the setting. By simply sliding the switch on the tom bracket, the bracket separates into two parts. When the drum is removed for breakdown, the "memory lock" portion remains on the tom stand or floor tom leg. This saves your positioning and makes the next set up quick and easy.

    These Quick-Lock tom brackets have some hidden acoustic benefits as well. Following the same principle of reducing vibration transference from drums to the tom stands or floor tom legs, these tom brackets also employ rubber lining to further isolate the drums and enhance resonance.

    Close
  • Super Resonant Mounting System (US. PAT.NO.9024163)
    Learn More

    To maximize the natural resonance of drums, tom toms should be mounted with minimal stress and strain on the shells and hoops. STAR drums feature our brand new mounting concept to achieve this goal, called the Super Resonant Mounting System.

    This mounting system has three contact points with the drum. Two are located on the batter hoop (A & B), and one is located on the bottom hoop (C). These three points create the largest possible theoretical triangle on the drum. The two contact points on the batter hoop (A & B) support the weight of the drum vertically. The third contact point (C) supports the horizontal weight of the drum, once the angle is set. According to physics, the further this third point is located, the less support it requires when setting an angle. Therefore, by placing the third contact point as far as possible on the bottom hoop, using the support arm, we were able to dramatically reduce the stress and strain on the shell and hoop and increase natural resonance.

    If you tilt your drums beyond a certain angle, which should only apply to a small minority of drummers, this mounting system operates a little differently. If a drum is titled beyond a certain angle, the bottom hoop will no longer be in contact with, or supported by, the bottom contact point (C). In that case, a different contact point (D), located on the batter hoop, comes into play. Although the triangle formed by these three points is much smaller, it does not put more strain on the batter hoop because of the angle of the drum. So the drum's natural resonance is still preserved in this case.

    To maximize the resonance of drums, it's very important to prevent the vibration of the shells from transferring to the tom stands. Therefore, in addition to the engineering outlined above, we also utilize rubber at each contact point between the shell and the mounting system, which helps to isolate the shells and greatly reduces the vibration transference.

    Close
  • Inside Finish
    Learn More

    In a very time consuming process, the bearing edges and insides of all STAR drum shells are meticulously hand finished with oil for a luxurious look. STAR Bubinga shells feature an oil-finished inner ply of Cordia, while STAR Maple drums feature oil-finished Maple interiors

    Close
  • Bearing Edges
    Learn More

    Vibration produced by hitting a drum transfers to the shell through the contact point between the drumhead and the shell. Therefore, the shape of the bearing edges is one of the most important factors in a drum's sound.
    STAR drums feature a bearing edge shape as shown in the diagram. Its peak is rounder than TAMA's traditional bearing edge. This rounded peak provides more contact between the drumhead and shell, allowing vibration to travel from the drumhead to the shell more efficiently. Also, the peak position of the edge is 3.5mm from the shell's outer surface, which further improves contact between the drumhead and drum.

    Close
